50mm M50 x 1.5 RH Female Flywheel Rotor Magneto Puller – Suzuki Arctic Cat ATV Motorcycle

PRODUCT DESCRIPTION

Heavy-duty 50mm M50 x 1.5mm Right-Hand Female Flywheel / Rotor / Magneto Puller designed for removing compatible flywheels and magneto rotors from the crankshaft.

This specialty removal tool is commonly used on a wide range of Suzuki motorcycles and ATVs as well as Arctic Cat ATVs and UTVs, including many Eiger, KingQuad, Vinson, QuadRunner, DR650, Savage, Intruder, Prowler and Wildcat applications.

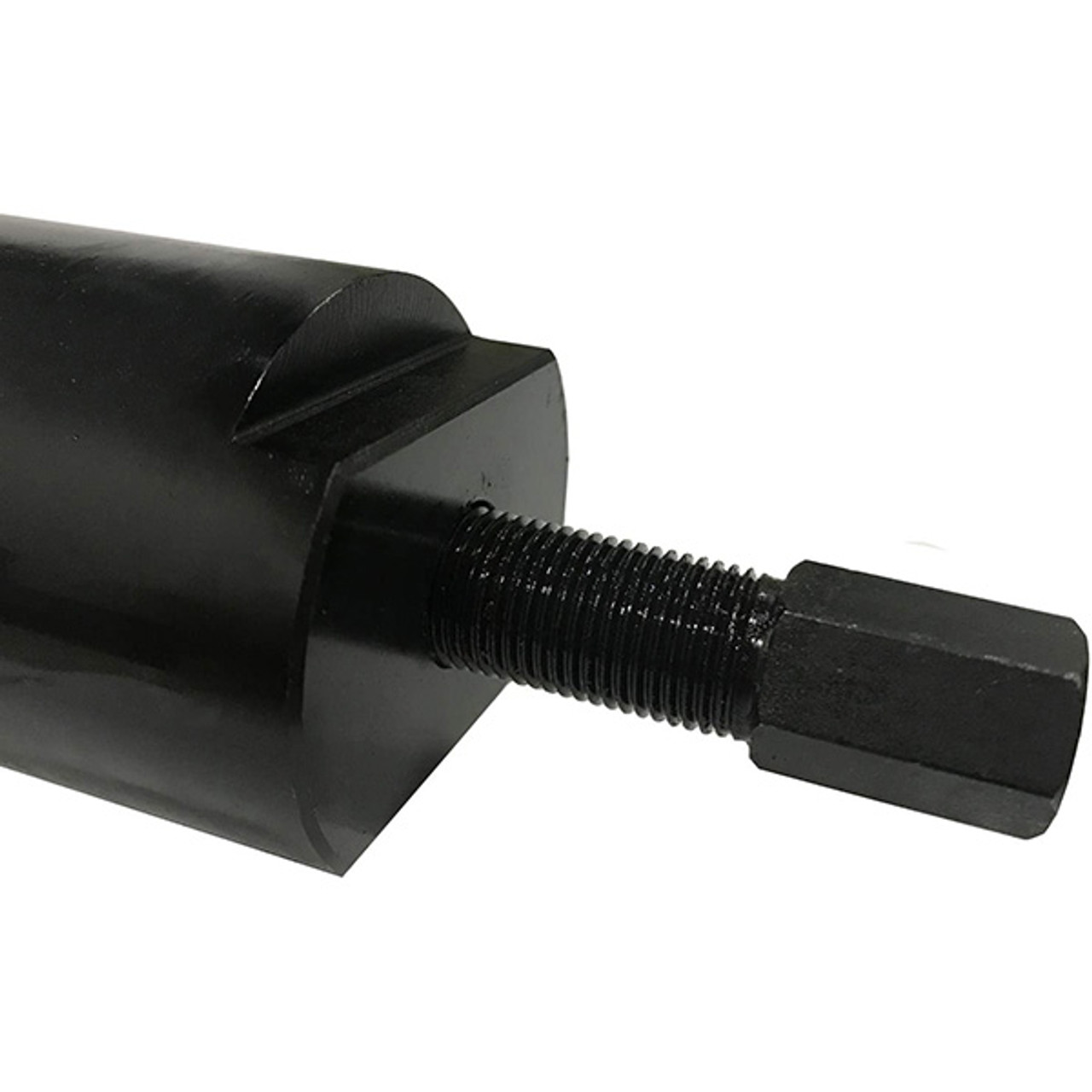

The puller threads onto the compatible flywheel/rotor and uses the center forcing bolt to apply controlled pressure against the crankshaft, allowing the flywheel to release from the crankshaft taper.

Using the correct puller provides a much safer and more controlled method than attempting to pry or hammer the flywheel off.

SPECIFICATIONS

• Tool Type: Flywheel / Magneto / Rotor Removal Puller

• Thread Size: M50 x 1.5mm

• Diameter: 50mm

• Thread Pitch: 1.5mm

• Thread Direction: Right-Hand (RH)

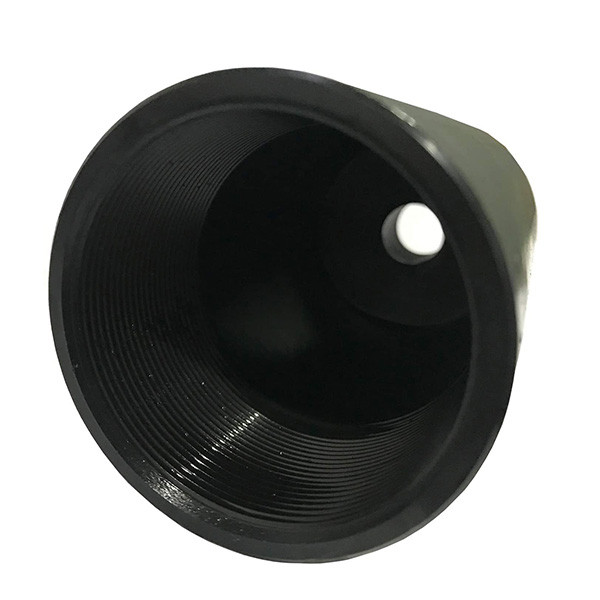

• Puller Type: Female / Internal Thread

• Finish: Black

• Heavy-duty steel construction

• Precision-machined threads

• Reusable specialty service tool

• Package Quantity: 1 Flywheel Puller

TOOL CROSS-REFERENCE NUMBERS

This M50 x 1.5 RH female-style puller is commonly associated with the following specialty-tool numbers:

• Suzuki: 09930-30721 / 09930-30721-LPT

• Arctic Cat: 0444-075 / 0444-206 / 0444-254

• Motion Pro: 08-0417

• DSS: MP-31 / SS-31

• WSM: 62-2001

• Polaris: PA-49319 / 285704 on certain applications

These numbers are provided for tool identification/cross-reference purposes only. This is an aftermarket service tool and is not represented as an OEM tool.

WHAT DOES THIS TOOL DO?

Flywheels and magneto rotors are commonly installed tightly onto a tapered section of the crankshaft.

Removing the retaining nut or bolt does not necessarily mean the flywheel will simply slide off.

This puller is designed to:

1. Thread onto a compatible M50 x 1.5 RH flywheel/rotor

2. Secure the puller body to the rotor

3. Use the center forcing bolt to apply pressure against the crankshaft

4. Create controlled outward pulling force

5. Release the flywheel/rotor from the crankshaft taper

This allows the rotor to be removed without attempting to pry behind it.

WHY WOULD YOU NEED IT?

Flywheel/rotor removal may be necessary when performing:

• Stator replacement

• Charging-system repairs

• Magneto service

• Flywheel replacement

• Rotor replacement

• Ignition-system repairs

• Pickup / trigger component service

• Crankshaft service

• Crankshaft seal replacement

• Electrical troubleshooting

• Engine teardown

• Engine rebuilding

• Internal engine repairs

• Access to components located behind the flywheel

Trying to remove a tightly seated flywheel using hammers, screwdrivers, pry bars or other improvised methods can potentially damage the flywheel, rotor magnets, stator, crankshaft, crankshaft threads or engine cases.

SUZUKI FITMENT

EIGER 400

• Eiger 400 LT-A400 2x4 Auto — 2002–2007

• Eiger 400 LT-A400F 4x4 Auto — 2002–2007

• Eiger 400 LT-F400 2x4 — 2002–2007

• Eiger 400 LT-F400F 4x4 — 2002–2007

KINGQUAD 400

• KingQuad 400 LT-A400F AS — 2008–2010

• KingQuad 400 LT-F400F FS — 2008–2010

• KingQuad 400 LT-F400F FSi — 2011–2017

KINGQUAD 450

• KingQuad 450 LT-A450X AXi 4x4 — 2007–2010

QUADMASTER / QUADRUNNER 500

• QuadMaster 500 LT-A500F — 2000–2001

• QuadRunner 500 LT-F500F 4x4 — 1998–2002

VINSON 500

• Vinson 500 LT-A500F 4x4 Auto — 2002–2007

• Vinson 500 LT-F500F 4x4 — 2003–2007

KINGQUAD 500

• KingQuad 500 LT-A500 AXi Power Steering — 2009, 2011

• KingQuad 500 LT-A500 AXi — 2011

KINGQUAD 700

• KingQuad 700 LT-A700X 4x4 — 2005–2007

KINGQUAD 750

• KingQuad 750 LT-A750X AXi 4x4 — 2009, 2011

SUZUKI MOTORCYCLE FITMENT

• DR650SE — 1996–2017

• Cavalcade 1400 GV1400 — 1986–1988

• Savage 650 LS650 — 1987–1997, 1999–2004

• VX800 — 1990–1993

• Intruder 700 VS700 — 1986

• Intruder 750 VS750GL — 1988–1991

• Intruder 800 VS800GL — 1992–1995

• Intruder 1400 VS1400GL — 1987–2004

• Intruder 1500 VL1500 — 1998–2004

Additional Suzuki applications may use the same M50 x 1.5 RH female puller. Always verify the required tool specifications before ordering.

ARCTIC CAT PROWLER FITMENT

• Prowler HDX 700 Limited — 2014

• Prowler HDX 700i — 2012–2013

• Prowler XT 550 — 2014–2015

• Prowler XT 550i — 2012–2013

• Prowler XTX 700 — 2014

• Prowler XTX 700i — 2012–2013

• Prowler XTZ 1000 — 2014

• Prowler XTZ 1000i — 2012–2013

• Prowler XT 1000 — 2015–2017

• Prowler XT 700 — 2015–2017

ARCTIC CAT WILDCAT FITMENT

• Wildcat 1000 — 2012–2015

• Wildcat 1000 LTD — 2013–2014

• Wildcat 4 1000 — 2013–2014

• Wildcat 4X — 2014–2017

• Wildcat 4X Limited — 2014–2015

• Wildcat Trail — 2014–2017

• Wildcat Trail XT — 2014–2017

• Wildcat Trail Limited — 2015–2017

• Wildcat X 1000 — 2013–2015

• Wildcat X Limited — 2014–2017

• Wildcat Sport — 2015–2016

• Wildcat Sport Limited — 2015–2017

• Wildcat Sport XT — 2015–2017

ADDITIONAL ARCTIC CAT APPLICATIONS

The M50 x 1.5 RH internal-thread puller design is also associated with numerous Arctic Cat ATV applications in the following engine-size families:

• Arctic Cat 350

• Arctic Cat 366

• Arctic Cat 375

• Arctic Cat 400

• Arctic Cat 425

• Arctic Cat 450 / 450 XC

• Arctic Cat 454

• Arctic Cat 500

• Arctic Cat 550

• Arctic Cat 570

• Arctic Cat 650

• Arctic Cat 700

• Arctic Cat 1000

IMPORTANT: Engine and crankshaft configurations vary. Some Arctic Cat applications may require an additional crankshaft protector or adapter that is not included with this puller.

Please verify your service manual and required tool before ordering.

POSSIBLE POLARIS APPLICATIONS

The M50 x 1.5 RH female puller design is also cross-referenced with Polaris PA-49319 / 285704 for certain applications, including some Sportsman 550 models.

Polaris fitment should be independently verified before purchasing.

IMPORTANT FITMENT INFORMATION

PLEASE MATCH YOUR REQUIRED TOOL BEFORE ORDERING.

The critical specifications for this puller are:

50MM DIAMETER
1.5MM THREAD PITCH
RIGHT-HAND THREAD (RH)
FEMALE / INTERNAL THREAD

Fitment should NOT be determined solely by engine displacement, vehicle manufacturer or appearance.

Different model years and versions of the same ATV, UTV or motorcycle may use different flywheel and crankshaft configurations.

Some applications may also require an additional crankshaft protector, cap or adapter during flywheel removal.

Please compare the specifications in this listing with your original flywheel and service information before ordering.

IMPORTANT USAGE INSTRUCTIONS

USE HAND TOOLS ONLY

DO NOT USE AN IMPACT WRENCH, AIR IMPACT OR POWER TOOL TO TIGHTEN THE PULLER.

Excessive impact force can potentially damage the:

• Puller

• Forcing bolt

• Flywheel

• Crankshaft

• Crankshaft threads

LUBRICATE THE THREADS

Lubricating the puller and forcing-bolt threads before use helps reduce friction, galling and unnecessary wear.

DO NOT FORCE INCORRECT THREADS

The puller should thread onto the compatible flywheel correctly.

If the puller does not thread smoothly onto the rotor, STOP and verify the required thread size.

Forcing an incorrect puller can damage the flywheel threads.

BASIC USE

1. Remove the appropriate flywheel retaining nut or bolt.

2. Verify that your application requires an M50 x 1.5 RH female/internal-thread puller.

3. Lubricate the puller and forcing-bolt threads.

4. Back the center forcing bolt out before installing the puller body.

5. Thread the puller body fully and correctly onto the flywheel by hand.

6. Make sure adequate thread engagement is achieved.

7. Tighten the center forcing bolt against the crankshaft using the appropriate hand tool.

8. Apply controlled pressure until the flywheel releases from the crankshaft taper.

9. Remove the puller and proceed with the required repair.

Never use excessive force or power/impact tools.

PACKAGE INCLUDES

1 x M50 x 1.5mm RH Female Magneto / Flywheel / Rotor Puller Tool

Ideal for:

• Motorcycle repair

• ATV repair

• UTV repair

• Powersports shops

• Engine builders

• Professional mechanics

• Home/DIY mechanics

• Stator and charging-system service

PLEASE VERIFY BEFORE ORDERING

M50 x 1.5mm • RIGHT-HAND • FEMALE / INTERNAL THREAD

Match the dimensions and required tool specifications for your particular machine before purchasing.

Distributed by GY6 STORE
