Product Description

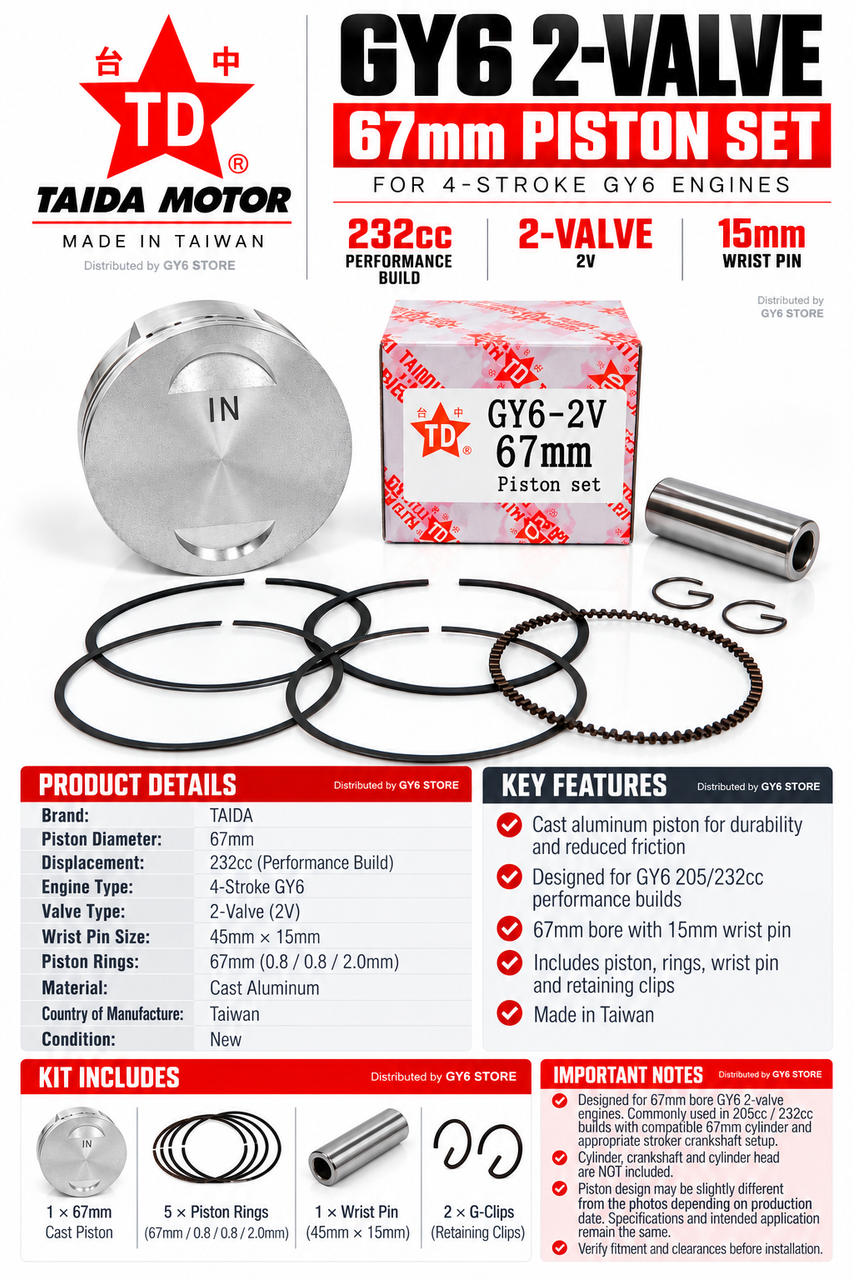

TAIDA 67MM CAST PISTON SET – GY6 2-VALVE
TAIDA 67mm cast aluminum piston kit for compatible high-performance 4-stroke GY6 engine builds.
Designed for 67mm bore applications using a 15mm wrist pin. This piston can be used as part of a 232cc GY6 configuration when paired with the appropriate 67mm cylinder and stroker crankshaft.
PRODUCT SPECIFICATIONS
• Brand: TAIDA
• Piston Type: Cast Aluminum
• Piston Diameter: 67mm
• Valve Configuration: 2-Valve / 2V
• Engine Type: 4-Stroke GY6
• Application: 205cc / 232cc performance builds
• Wrist Pin: 45mm × 15mm
• Wrist Pin Diameter: 15mm
• Piston Ring Size: 67mm
• Ring Thickness: 0.8mm / 0.8mm / 2.0mm
• Made in: Taiwan
• Condition: New
KIT INCLUDES
• 1 × TAIDA 67mm Cast Piston
• 5 × 67mm Piston Ring Components
• 1 × 45mm × 15mm Wrist Pin
• 2 × G-Clips / Wrist Pin Retaining Clips
232cc APPLICATION
For a 232cc GY6 build, this 67mm piston is intended to be used with the appropriate:
• TAIDA 67mm Cylinder / Jug
• TAIDA 66mm Stroker Crankshaft
• Compatible cylinder head and valvetrain configuration
Cylinder, crankshaft and cylinder head are NOT included.
IMPORTANT FITMENT NOTE
This is a performance piston for modified GY6 engines and is not a direct replacement based on engine displacement alone.
Before ordering, verify:
67mm Bore • 15mm Wrist Pin • 2V Piston Configuration • Required Stroke/Clearances
Professional assembly and clearance verification are recommended when building a stroker or big-bore engine.
MADE IN TAIWAN
